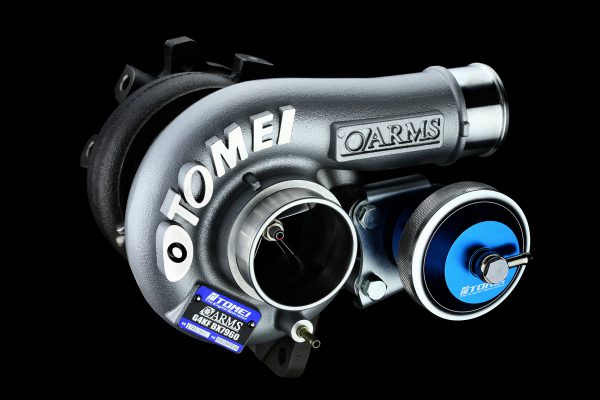

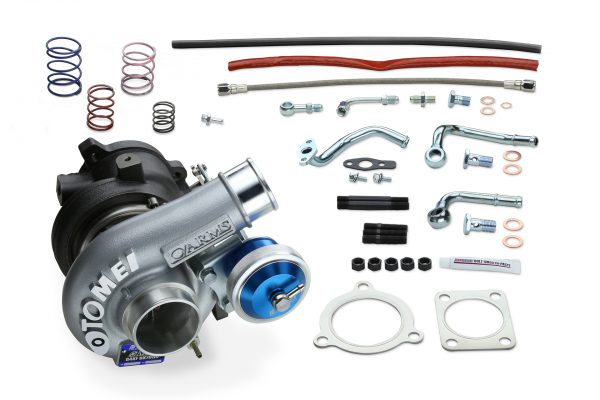

TARGET HP (HP)
400
BEARING TYPE
BALL BEARING
INITIAL BOOST SETTING (kgf/cm2)
1.0
COMPRESSOR WHEEL
ⒶIND(mm)
52.6
ⒷEXD(mm)
68.0
TRIM
60
BLADES
6/6
MATERIAL
A2618
PRODUCTION
CNC BILLET
TURBINE WHEEL
ⒸEXD(mm)
54.0
ⒹIND(mm)
61.0
TRIM
79
BLADES
9
MATERIAL
K418
PRODUCTION
CAST
COMPRESSOR HOUSING
IND(mm)
55.5
EXD(mm)
41.7
A/R
0.73
TURBINE HOUSING
IND(mm)
52.0
EXD(mm)
66.0
A/R
0.57
TURBOCHARGER SIZE GUIDE
BX Ball Bearing | 79 | 60 |
MX Journal Bearing |
||
BEARING TYPE | TURBINE WHEEL CODE | COMPRESSOR WHEEL CODE |
TURBINE WHEEL
| CODE | 76 | 77 | 79 | 82 | ||
| IND(mm) | 56.0 | 56.0 | 61.0 | 67.0 | ||
| EXD(mm) | 47.5 | 49.1 | 54.0 | 58.8 | ||
| TRIM | 72 | 77 | 79 | 77 | ||
 | |  |  |
COMPRESSOR WHEEL
| CODE | 55 | 60 | 65 | 67 | 70 | 80 |
| IND(mm) | 50.3 | 52.6 | 54.8 | 56.3 | 59.0 | 61.4 |
| EXD(mm) | 68.0 | 68.0 | 76.2 | 75.0 | 76.2 | 82.0 |
| TRIM | 56.3 | 75.0 | 56 | 56 | 60 | 56 |
 | |  |  | |  |
