Maximizes
INTERCOOLER performance
GREDDY INTERCOOLER KIT SOLD SEPARATELY
Easy to install user-centric design.
KA24DE Turbo Installation Guide
240SX DYNO TEST
SPEC 240SX KA24DE ‘96
>TOMEI TURBO KIT M8290
>TOMEI TUBO PIPING KIT
>TOMEI Camshaft 270°- 9.8mm

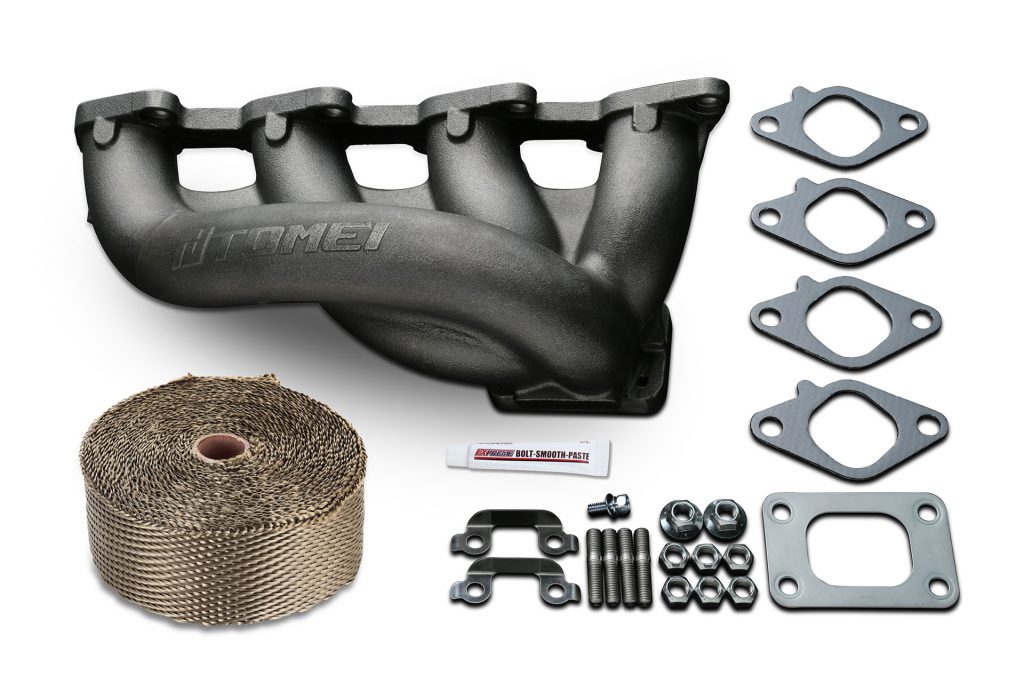

>TOMEI Exhaust Manifold
>TOMEI Outlet Pipe
>TOMEI EXPREME Ti Cat Straight pipe
>TOMEI EXPREME Ti Muffler
>TOMEI Fuel Pump Universal 255L/h
>GREDDY SPEC-LS TYPE-24E
>GREDDY Suction Kit Φ80
>TOMEI Prototype Piston 89.5mm
>TOMEI Prototype Connecting Rod
>TOMEI Head Gasket Φ90-1.2mm
>INJECTOR DYNAMICS 725-48-14
>HALTECH Platinum Sport 1000
This product is designed to be used in conjunction with the TOMEI KA24DET CORE TURBO PARTS and GREDDY ■SUCTION KIT ■INTERCOOLER KIT listed below.Alternative products from other manufacturers can also be used instead but may require additional modifications to complete the installation.
KA24DET SYSTEM OVERVIEW
TURBO CHARGER KIT
BX7960 Part No. TB403A-NS16C
BX8270 Part No. TB403A-NS16D
MX7960 Part No. TB401A-NS16C
MX7960 Part No. TB401A-NS16C

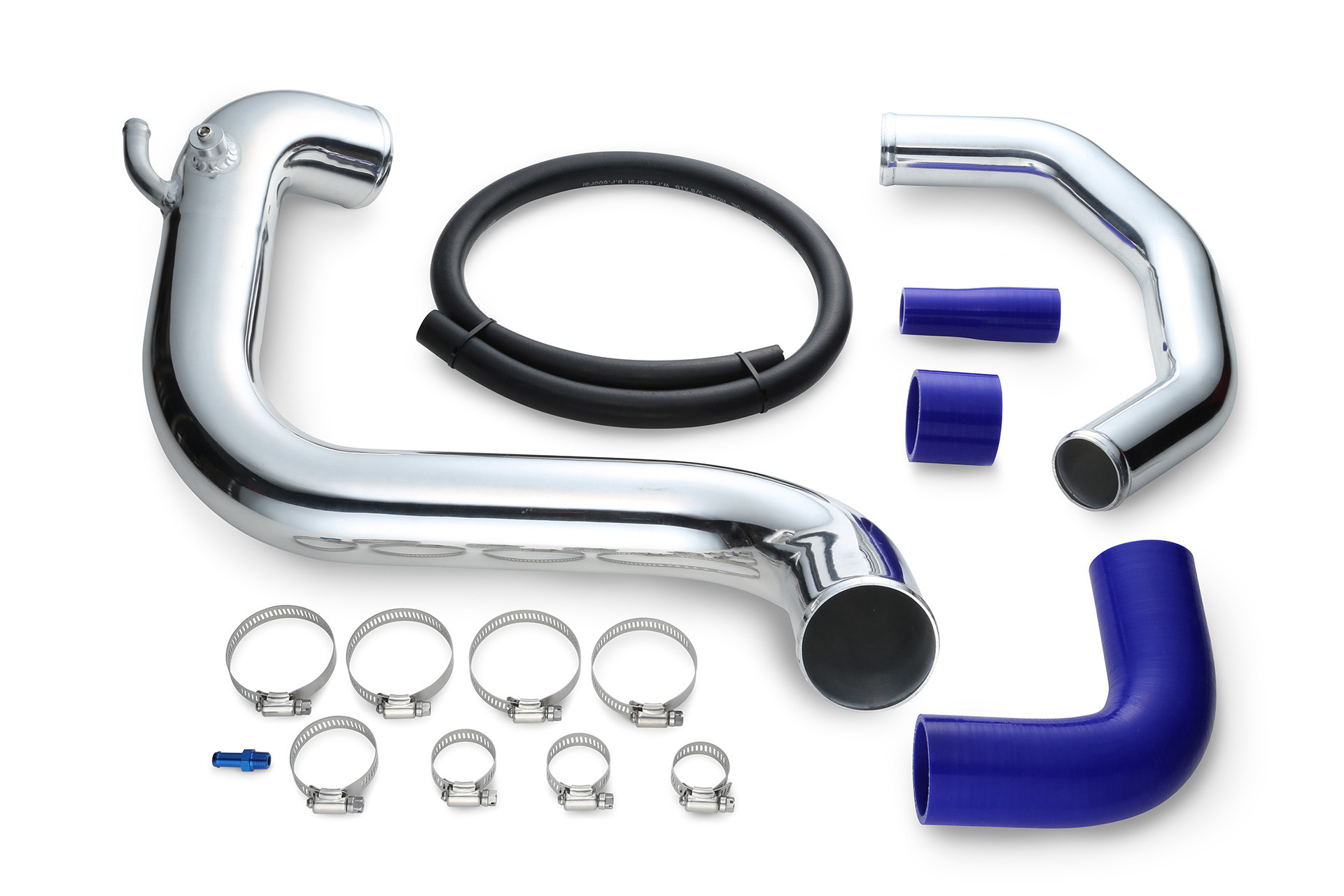

INTERCOOLER PIPING KIT
Part No.TB410A-NS16A
