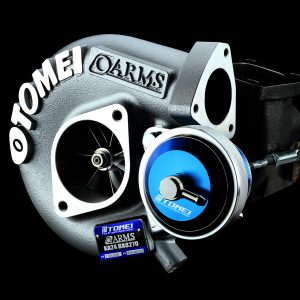

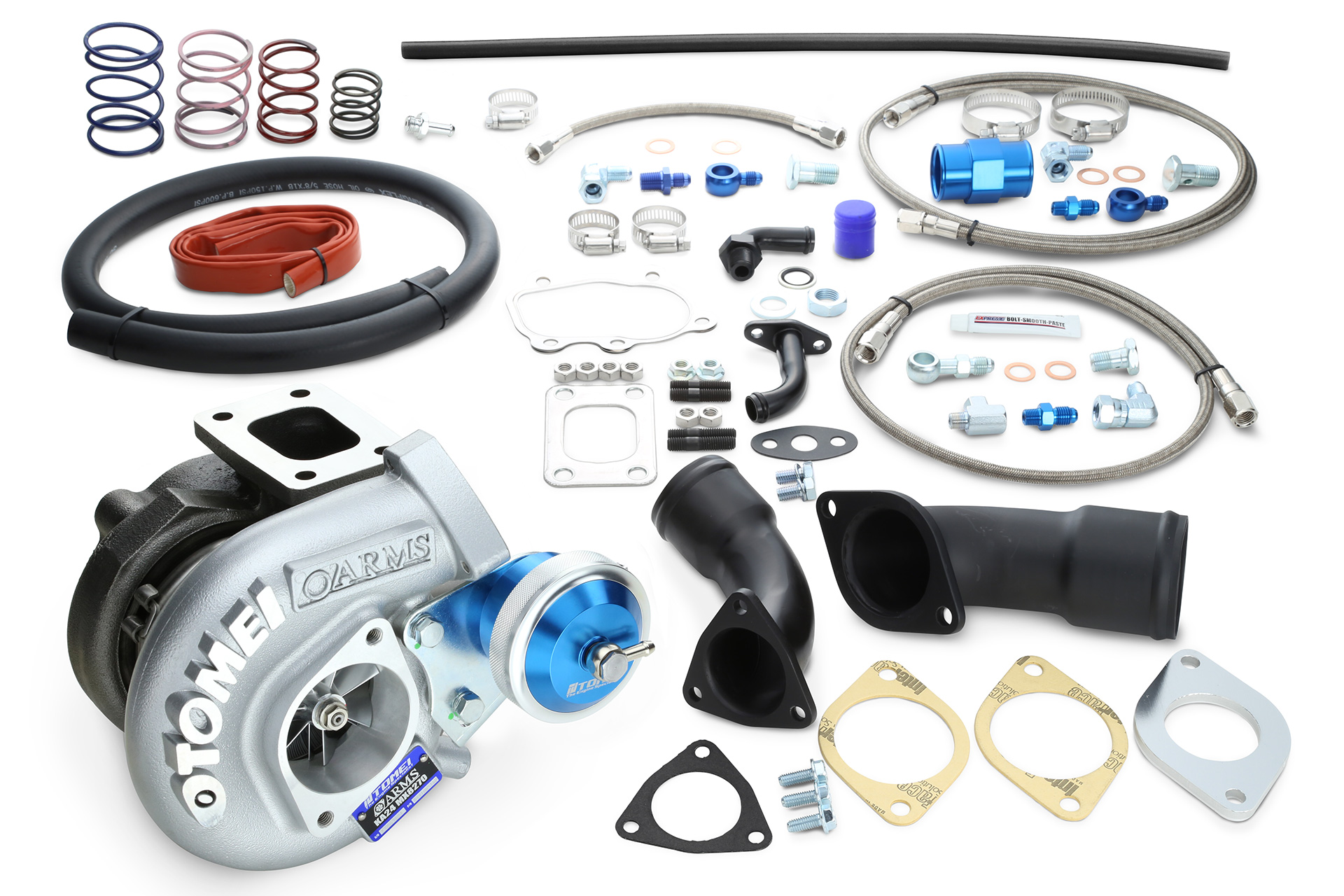

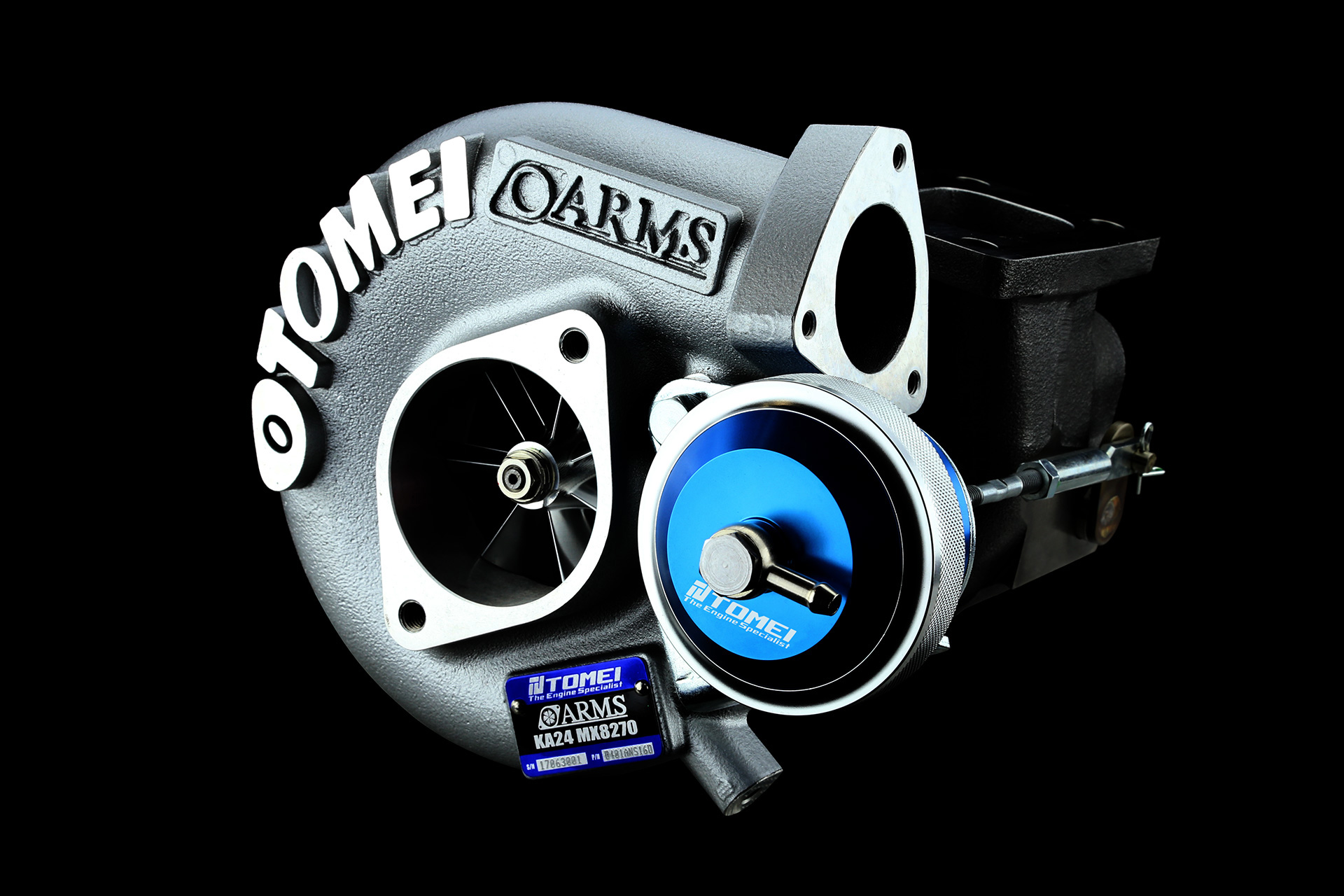

J/B TURBOCHARGER KIT ARMS MX8270 KA24DE
J/B TURBOCHARGER KIT ARMS MX8270 KA24DE
PART No. TB401A-NS16D
$
1,580.00
SET UP GUIDE
REPAIR PARTS
AVAILABILITY
MANUAL
J/B TURBOCHARGER KIT ARMS MX8270 KA24DE quantity
Add to cart
Description
TARGET HP (HP)
450
BEARING TYPE
JOURNAL BEARING
INITIAL BOOST SETTING (kgf/cm2)
1.0
COMPRESSOR WHEEL
ⒶIND(mm)
59.0
ⒷEXD(mm)
76.2
TRIM
60
BLADES
6/6
MATERIAL
A2618
PRODUCTION
CNC BILLET
TURBINE WHEEL
ⒸEXD(mm)
58.8
ⒹIND(mm)
67.0
TRIM
77
BLADES
11
MATERIAL
K418
PRODUCTION
CAST
COMPRESSOR HOUSING
IND(mm)
60.0
EXD(mm)
38.75
A/R
0.62
TURBINE HOUSING
IND(mm)
T25
EXD(mm)
SR20DET
A/R
0.57

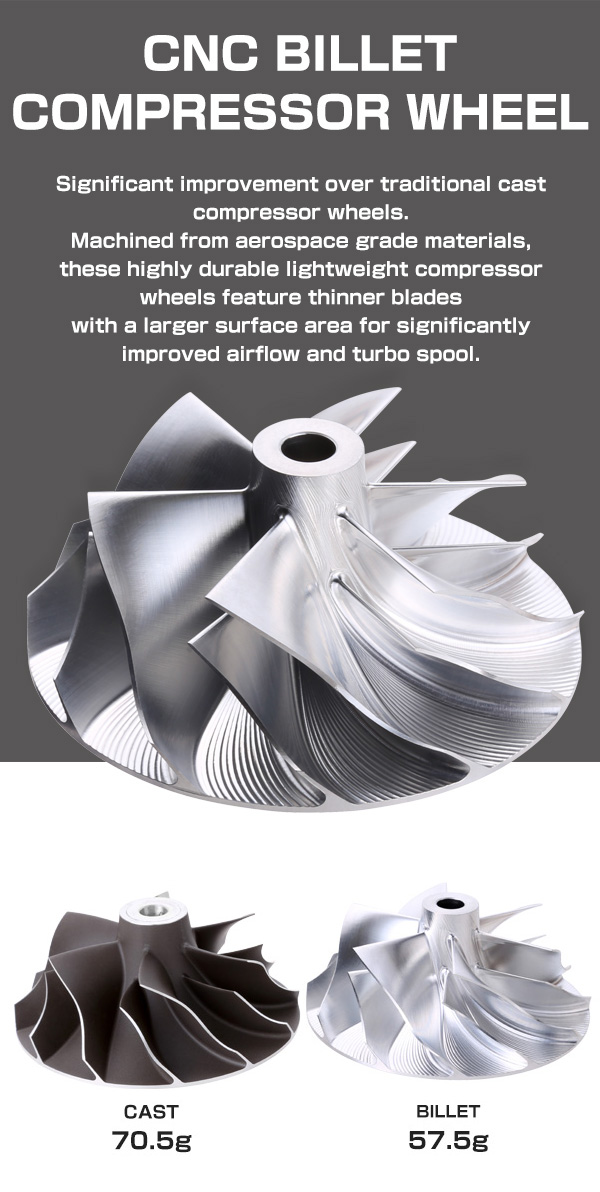

ABOUT CNC BILLET COMPRESSOR WHEEL

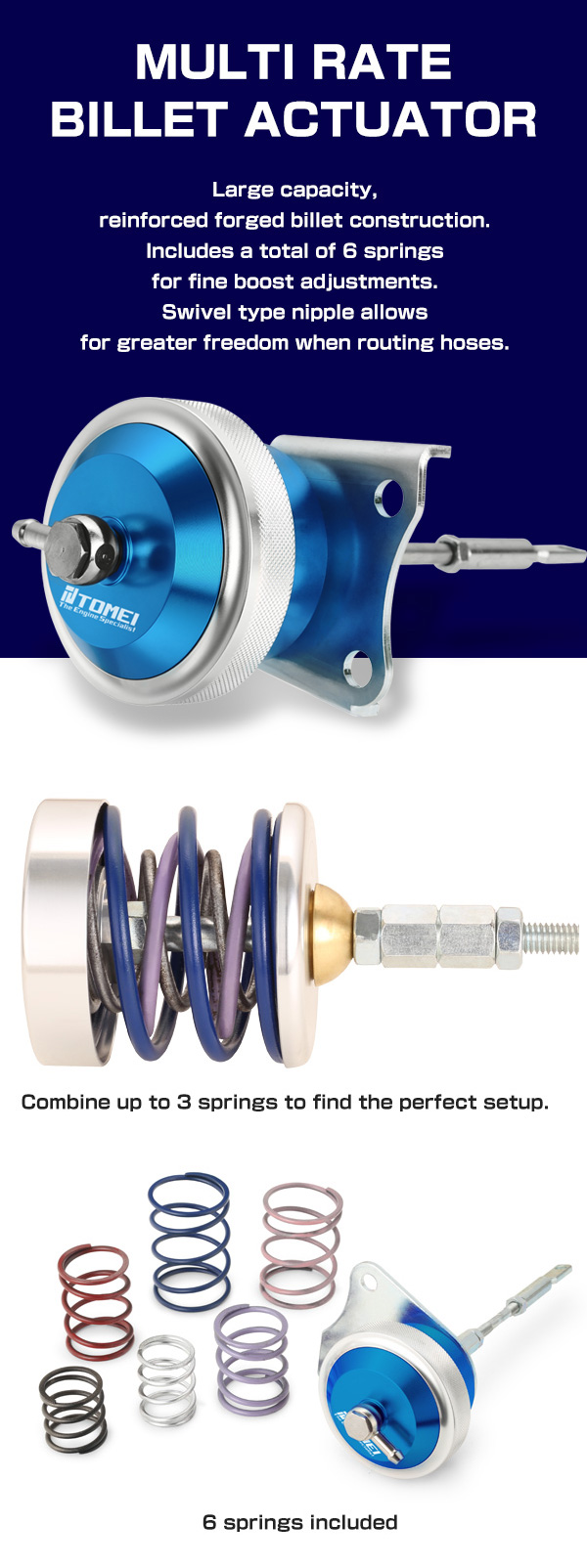

ABOUT MULTI RATE BILLET ACTUATOR
RELATED PRODUCTS...
B/B TURBOCHARGER KIT ARMS BX8270 KA24DE
$
1,780.00

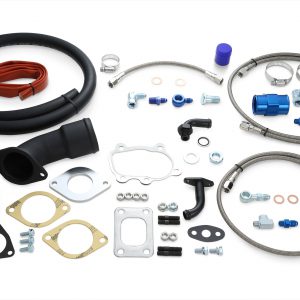

J/B TURBOCHARGER KIT ARMS KA24DE HARDWARE PACK
$
340.00
J/B TURBOCHARGER KIT ARMS MX7960 KA24DE
$
1,580.00
B/B TURBOCHARGER KIT ARMS BX7960 KA24DE
$
1,780.00

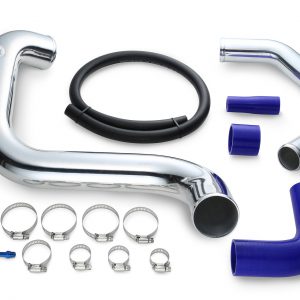

INTERCOOLER PIPING KIT KA24DE
$
