4inch FULL TITANIUM
SUPER LIGHTWEIGHT MUFFLER
|
|
![](image_ti/20_20space.gif) |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
Application :
JZA80 SUPRA 6M/T 4A/T ’93-’02 |
MSRP $1,390.00 (USD) |
|
PART NUMBER:TB6090-TY03A |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
SPECIFICATION COMPARISON VS STOCK |
![](image_ti/20_20space.gif) |
|
![](image_ti/jza80/jza80_comparison.jpg) |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
|
TOMEI |
STOCK |
PART No. |
TB6090-TY03A |
-
|
MSRP |
$1,390.00 (USD) |
|
MATERIAL |
TITANIUM
|
− |
MAIN PIPE A DIAMETER |
3.0”(76.3)-4.0”(101.6)
|
2.8”(70.0)-2.1”(54.0)x2-1.9”(48.6)x2 |
MAIN PIPE THICKNESS |
1.0mm |
1.5mm |
SILENCER DIAMETER |
6.0”(152.0mm)
|
Center : 9.8”x4.33”(250.0x110.0mm)x2 Oval |
|
|
Main : 13.8”x7.7”(350.0x195.0mm) Oval |
SILENCER THICKNESS |
1.0mm |
1.5mm |
EXIT DIAMETER |
4.5”(115.0mm) |
Outer : 3.9”(100.0mm)
|
EXIT THICKNESS |
1.0mm |
1.5mm |
FLANGE THICKNESS |
8.0mm
|
8.0mm |
WEIGHT |
13.2lbs(6.0kg) |
39.0lbs(17.7kg) |
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

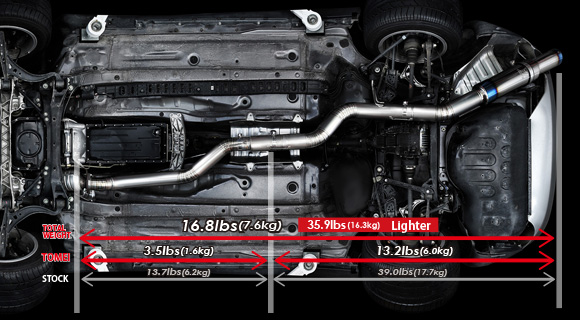

WEIGHT COMPARISON |
TOMEI |
STOCK |
13.2 lbs (6.0 kg) |
39.0 lbs(17.7 kg) |
|
|
25.8lbs
(11.7kg)
Weight Reduction!! |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
TEST DATA |
![](image_ti/20_20space.gif) |
|
|
|

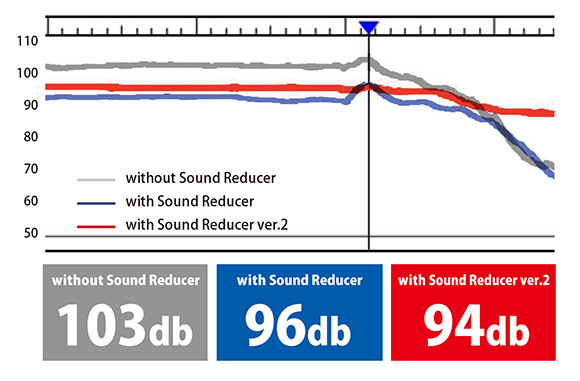

EXHAUST NOISE TEST |
![](image_ti/20_20space.gif) |
![](image_ti/jza80/jza80_noise-test.jpg) |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
![](image_ti/20_20space.gif) |
|
|
|
|

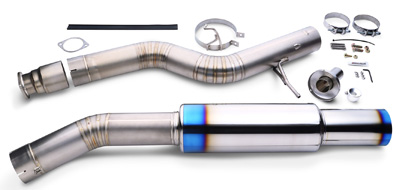

Adapter Flange φ89 (1) |
![](image_ti/20_20space.gif) |
Main Pipe (1) |
![](image_ti/20_20space.gif) |
Silencer (1) |
|
Gasket (1) |
|
Flange Nut M10 (2) |
|
Flange Bolt M10 (2) |
|
Clamp Band SW2-112 (2) |
|
Spring (3) |
|
Flange Bolt M8 (1) |
![](image_ti/20_20space.gif) |
|
![](image_ti/20_20space.gif) |
Flange Nut M8 (1) |
![](image_ti/20_20space.gif) |
Silencer Band (1) |
![](image_ti/20_20space.gif) |
Silencer Band Rubber (1) |
|
Sound reducer ver.2 (1) |
|
Botton Bolt M6 (3) |
|
Flange Nut M6 (3) |
|
Flange Bolt M6 (1) |
|
Hex.wrench (1) |
|
Zip tie (1) |
|
Bolt smooth paste (1) |
|
|
|
|
|
|
