KIT CONTENTS |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
Mid Pipe (1) |
![](image_ti/20_20space.gif) |
Adapter Falnge (1) |
![](image_ti/20_20space.gif) |
Gasket (1) |
|
Clamp Band 86-91 (3) |
|
Flange Bolt M10(4) |
|
Flange Nut M10 (4) |
|
Spring (2) |
|
Bolt smooth paste (1) |
|
|
|
|
|
|
|
APPLICATION:JZA80 SUPRA 6 M/T 4A/T '93-'02 |
|
MSRP $590.00 (USD) |
|
PART NUMBER:TB6110-TY03A |
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
![](image_ti/caution_yellow.gif) |
This product is for competition use ONLY and should NOT be used,
fitted or registered to vehicles that are used on or intended for public roads. |
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |

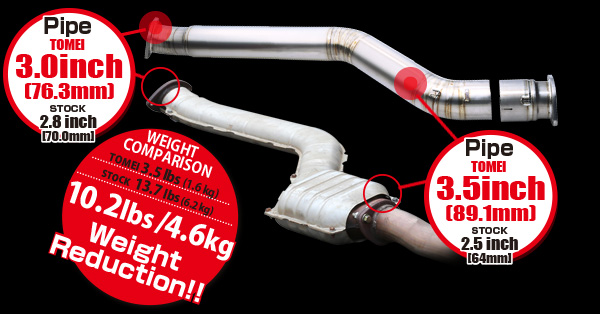

SPECIFICATIONS COMPARISON VS STOCK |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
![](image_ti/jza80/jza80_midpipe_comparison.jpg) |
|
TOMEI |
STOCK |
PART No. |
TB6100-TY03A |
− |
MSRP |
$590.00 (USD) |
− |
MATERIAL |
Ti
|
− |
PIPE DIAMETER |
3inch(76.3)-3.51inch(89.1) |
I2.76inch(70.0)-2.52inch(64.0) |
PIPE THICKNESS |
1.0mm |
1.5mm |
WEIGHT |
3.53lbs(1.6kg) |
13.7lbs(6.2kg) |
|
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
WEIGHT COMPARISON |
TOMEI |
STOCK |
3.53 lbs (1.6 kg) |
13.7 lbs(6.2 kg) |
|
|
10.2bs
(4.6kg)
Weight Reduction!! |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
FUTURES |

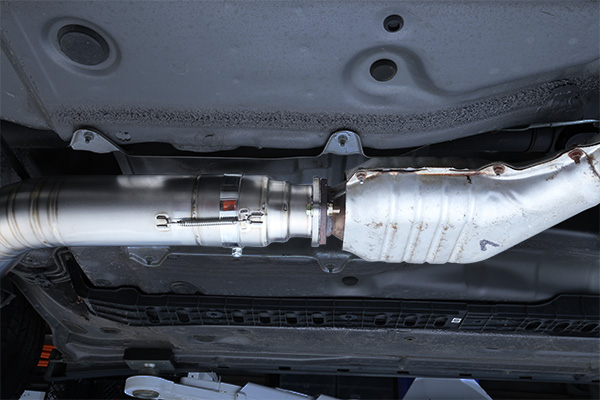

Includes removeable flange that mates to stock mid pipe. |
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
![](image_ti/jza80/jza80_flange-adapter.jpg) |
|
|
|
This can be replaced with the adapter pipe (sold separately) for a stepless connection with the TOMEI mid pipe. |
|
|
|
|
|
|
![](image_ti/jza80/jza80_gluf_s.jpg) |
|
![](http://www.tomeipowered-usa.com/usa/allen/NewsLetter/enews/2011Dec16/kara_10.gif) |
Other exhaust related parts for the JZA80 |
|
|
|
