SR20DET stock turbo compatible.
Even more turbos to choose from Designed for
both stock and bolt-on SR20DET turbochargers!
Part No. TB401A-NS16PK
MSRP $340.00(USD)
  TURBOCHARGER UNIT NOT INCLUDED
Easy to install user-centric design.
Turbo power with only minimal modifications.

KA24DE Turbo Installation Guide
Detailed, step-by-step guide, complete with photos.

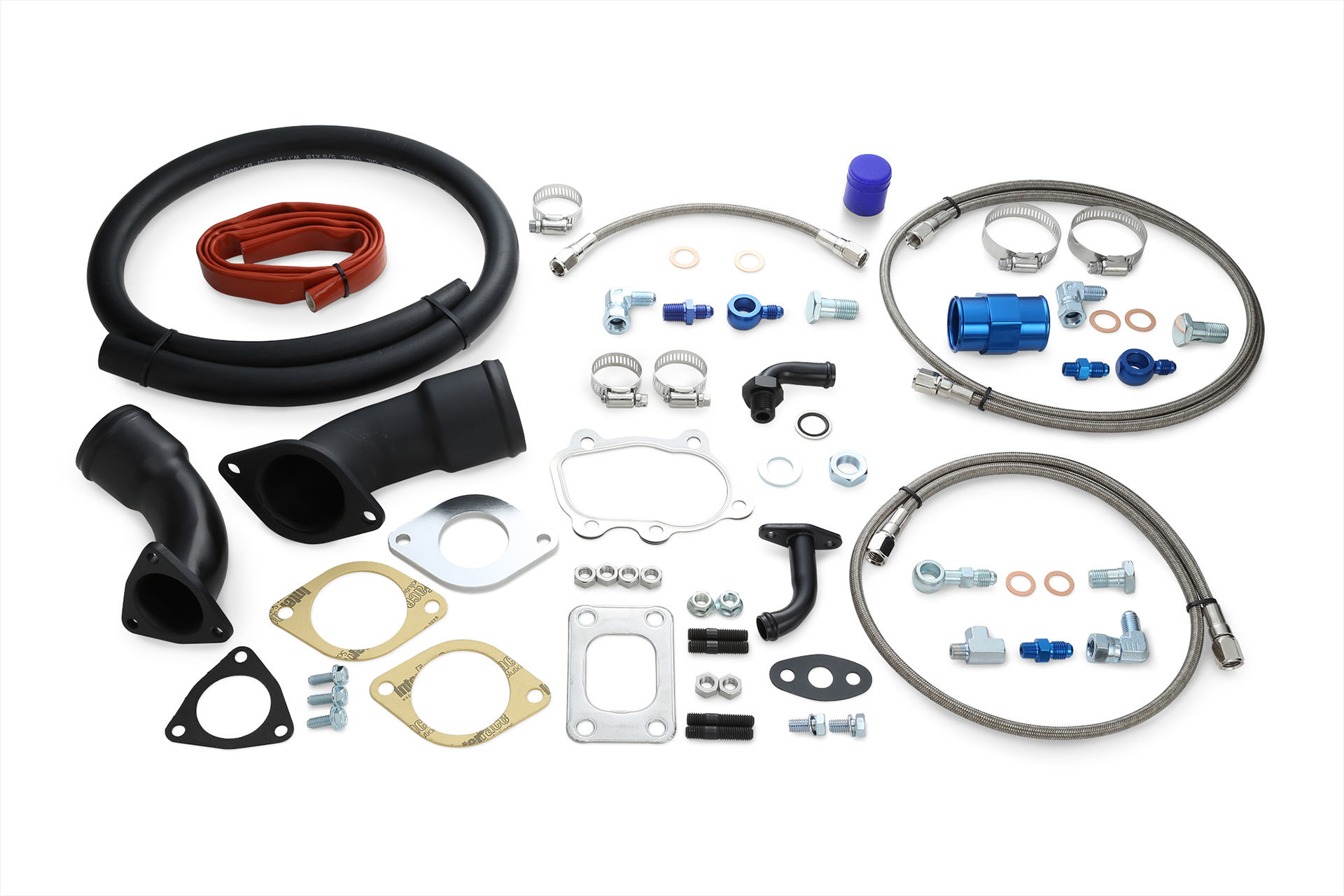

KIT CONTENTS HARDWARE PACK

Compressor Out Pipe

1
Compressor Out Gasket 1
Flange Bolt M6 3
Compressor In Pipe 1
Compressor In Pipe Gasket 2
Compressor In Pipe Adapter 1
Turbine In Gasket 1
Hexagon Nut M8×P=1.25 4
Stud Bolt M8×P=1.25×L=35mm 2
Flange Nut M8×P=1.25 2
Stud Bolt M8×P=1.25×L=38mm 2
Hexagon Nut M8×P=1.25 2
Turbine Out Gasket 1
Mesh Hose 940mm 1
3way Adapter 1
Fitting PT1/8-AN4 1
Fitting 4AN M to F 90° 2
Banjo Fitting M12 4AN 1
Washer M12 2
Banjo Bolt M12 1
Oil Drain Pipe A 1
Oil Return Gasket 1
Bolt M6×P=1.0×L=16mm 2
Oil Drain Pipe B 1
Nut M16 1
Flat Washer M16 1
Seal Washer M16 1
Hose Band 18-32mm 2
Mesh Hose 1350mm 1

Water Pipe Adapter 1
Fitting PT1/8-AN4 1
Fitting 4AN M to F 90° 1
Hose Band 27-51mm 2
Banjo Fitting M14 4AN 1
Washer M14 2
Water Bolt 1
Mesh Hose 200mm 1
Fitting PT1/4-AN4 1
Fitting 4AN M to F 90° 1
Banjo Fitting M14 4AN 1
Washer M14 2
Water Bolt 1
Hose Band 18-32mm 1
Blind Plug 1
Heat Protecter Hose 1
Oil Proof Hose 1
240SX DYNO TEST

SPEC 240SX KA24DE ‘96
>TOMEI TURBO KIT M8290
>TOMEI TUBO PIPING KIT
>TOMEI Camshaft 270°- 9.8mm
>TOMEI Exhaust Manifold
>TOMEI Outlet Pipe
>TOMEI EXPREME Ti Cat Straight pipe
>TOMEI EXPREME Ti Muffler
>TOMEI Fuel Pump Universal 255L/h
>GREDDY SPEC-LS TYPE-24E
>GREDDY Suction Kit Φ80
>TOMEI Prototype Piston 89.5mm
>TOMEI Prototype Connecting Rod
>TOMEI Head Gasket Φ90-1.2mm
>INJECTOR DYNAMICS 725-48-14
>HALTECH Platinum Sport 1000

This product is designed to be used in conjunction with the TOMEI KA24DET CORE TURBO PARTS and GREDDY ■SUCTION KIT ■INTERCOOLER KIT listed below.Alternative products from other manufacturers can also be used instead but may require additional modifications to complete the installation.

KA24DET SYSTEM OVERVIEW
 TURBO EXHAUST MANIFOLD
 Part No.TB601A-NS16A
MSRP $590.00(USD)

 TURBOCHARGER KIT
 M7960 Part No.TB401A-NS16A
 M8270 Part No.TB401A-NS16B

MSRP $1,390.00(USD)
 INTERCOOLER PIPING KIT
 Part No.TB403A-NS16A
MSRP $190.00(USD)
