PRODUCT |
APPLICATION |
PISTON SIZE |
KIT PART# |
MSRP |
WITH CONROD
BEARINGS PART # |
MSRP |
EJ26
KIT |
EJ255
EJ257 |
Φ99.75 |
252001
|
$4,180.00
(USD) |
250015
|
Discontinued
|
|

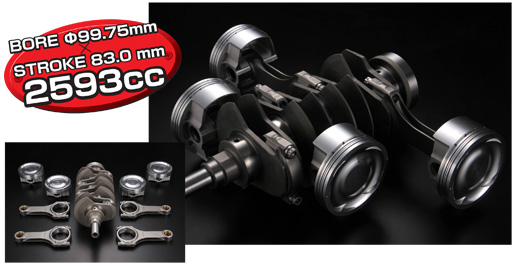

| ●内容 FORGED FULL COUNTER CRANKSHAFT FORGED H-BEAM CONROD FORGED PISTON KIT |
| |
| KIT WITH BEARINGS INCLUDED |
 |
 |
 |
|
TOMEI Competition Bearing series
The TOMEI Competition Bearing series are designed for fatigue resistance, durability, effective lubrication and resistance to scoring. Designed for use on engines that will be outputting 1,000 HP and at over 10,000RPM. These advanced designed bearings are suitable for the serious professionals in mind whom need results. We also have 3 grades available on all engine applications. |
|
 |
|
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings. This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle. |
|
|
|
|
| |
 |
| |
 |

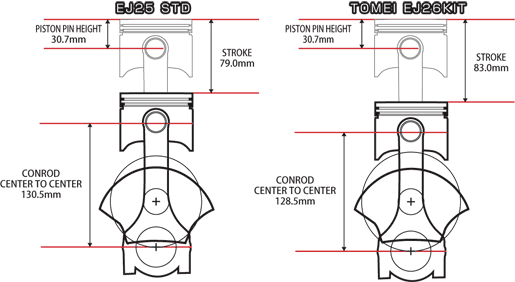

| DISPLACEMENT COMPARISON |
|
EJ20 STD
|
TOMEI EJ22KIT
|
EJ25 STD
|
TOMEI EJ26KIT
|
BORE x STROKE |
Φ92×75.0mm
|
Φ92.5×79.0mm |
99.5×79.0mm |
Φ99.75×83.0mm |
DISPLACEMENT |
1994cc |
2123cc |
2457cc |
2593cc |
|
|
| |
| COMPRESION RATIO REFERENCE |
PRODUCT
|
PISTON SIZE |
Compression Ratio Reference (With Gasket)
|
GASKET
BORE SIZE
|
t-0.7mm
|
t-1.0mm
|
t-1.2mm
|
t-1.5mm
|
EJ26KIT |
Φ99.75 |
8.5 |
8.3 |
8.2 |
8.0 |
Φ101.0 |
|
|
| ※The above compression ratio is based on the combustion chamber volume of 50cc. |
| |
