EXHAUST MANIFOLD for MX-5 MIATA NC



After extensive testing we're finally able to deliver a no compromise exhaust manifold that offers significant performance gains especially at the top end. The new EXPREME manifold for MX-5 MIATA NC improves upon the stock version in every way.

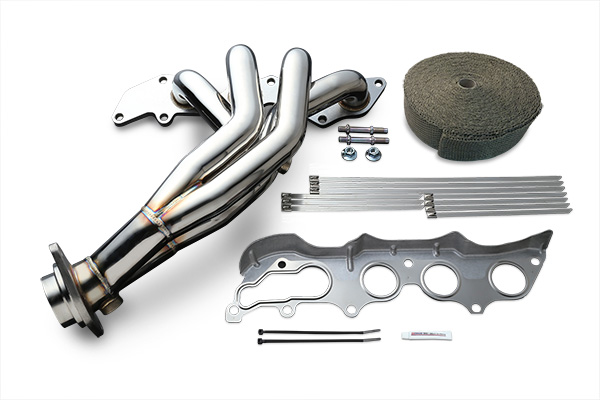

KIT CONTENTS
EXHAUST MANIFOLD（1）
EXHAUST MANIFOLD GASKET（1）
STUD BOLT （2）
FLANGE NUT （2）
TIE WRAP 200mm （2）
TITANIUM EXHAUST BANDAGE（1）
BANDAGE BAND 362mm （3）
BANDAGE BAND 201mm （7）
BOLT SMOOTH PASTE （1）
COMPLETE KIT
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming
seized under heat.

Application : MAZDA MX-5 MIATA NC
MSRP $580.00 (USD)
PART NUMBER : TB6010-MZ03A
※ Designed for Competition Use only
FEATURES
CATLESS - Significantly lighter than stock with dramatically improved exhaust flow efficiency.

Precision made, highly durable flange(s). O2 sensor boss also included/attached.

Precision cast ('Lost-Wax') and machined single-piece flange.


SPECIFICATIONS

TOMEI
 STD
PART No.
TB6010-MZ03A
 −
MSRP
$580.00 (USD)
 −
MATERIAL
SUS304
 −
PIPE DIAMETER Φ42.7-60.5 Φ38.1-60.5
PIPE THICKNESS 1.5ｍｍ 1.5ｍｍ
FLANGE THICKNESS F:11.0mm
R:8.0mm
F:11.5mm
R:2.5mm
Press
WEIGHT 15.43lbs (4.85 kg) 50.71lbs
(7.0 kg)
Install together with the
EXPREME Ti TITANIUM MUFFLER / STRAIGHT PIPE
for maximum performance gains and weight reduction!
FULL TITANIUM MUFFLER
MSRP $450.00 (USD)
PART NUMBER : TB6090-MZ03A
※ Designed for Competition Use only

FULL TITANIUM STRAIGHT PIPE
MSRP $790.00 (USD)
PART NUMBER : TB6100-MZ03A
※ Designed for Competition Use only

WEIGHT COMPARISON

37.59lb (17.05kg) Weight Reduction!!
Other exhaust related parts for the MX-5 MIATA NC

EXPREME Ti
FULL TITANIUM MUFFLER
MSRP $450.00 (USD)
PART NUMBER　TB6090-MZ03A
EXPREME Ti FULL TITANIUM
CAT STRAIGHT PIPE
MSRP $790.00 (USD)
PART NUMBER　TB6100-MZ03A
