| KIT CONTENTS |
|
| STRAIGHT PIPE A (1) |
|
| STRAIGHT PIPE B (1) |
|
| CENTER GASKET (1) |
|
| MUFFLER GASKET (1) |
|
| FLANGE BOLT (4) |
|
| FLANGE NUT (4) |
|
| COPPER WASHER (1) |
|
| A/F SENSOR PLUG (1) |
|
| BOLT SMOOTH PASTE (1) |
|
|
|
|
|
| |
APPLICATION：MAZDA MX-5 MIATA NC |
|
|
MSRP $890.00 (USD) |
|
| PART NUMBER：TB6100-MZ03A |
|
|
|
| ※ Designed for Competition Use only |
|

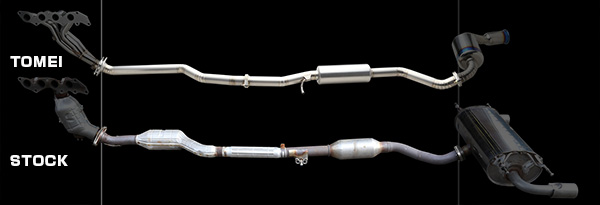

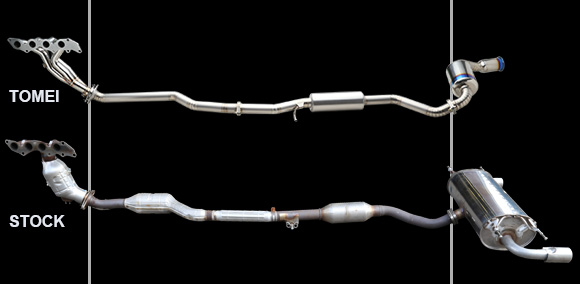

| SPECIFICATIONS COMPARISON VS STOCK |
|
 |
|
TOMEI |
STOCK |
PART No. |
TB6100-MZ03A |
− |
MSRP |
$790.00 (USD) |
− |
MATERIAL |
Ti |
− |
PIPE DIAMETER |
2.38inch(60.5mm) |
2.38inch(60.5mm) |
PIPE THICKNESS |
1.0mm |
1.5mm |
FLANGE THICKNESS |
F : 2.0mm Press
Center R : 8.0mm flat |
F : 3.0mm Pressed
R : 2.5mm Pressed |
WEIGHT |
7.94lb(3.6kg) |
18.74lb(8.5kg) |
|
|
|
| FUTURES |
 |

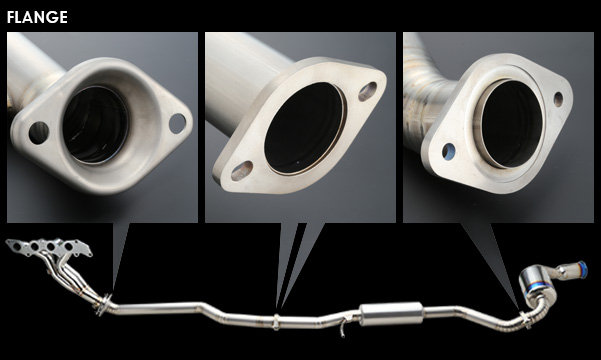

| Precision lightweight Titanium flange |
| |
|

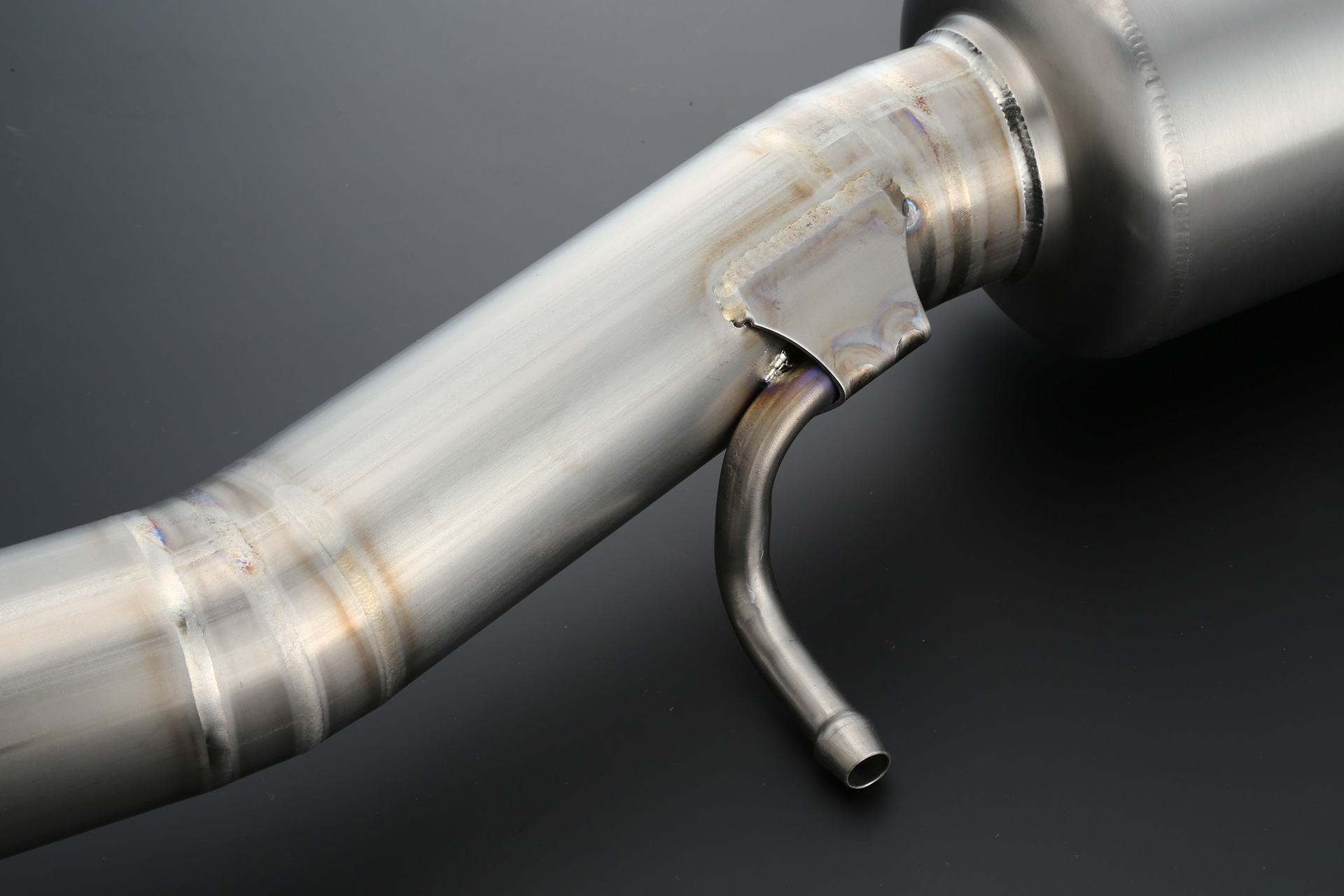

| Lightweight Titanium bracket |
|
|
|
|

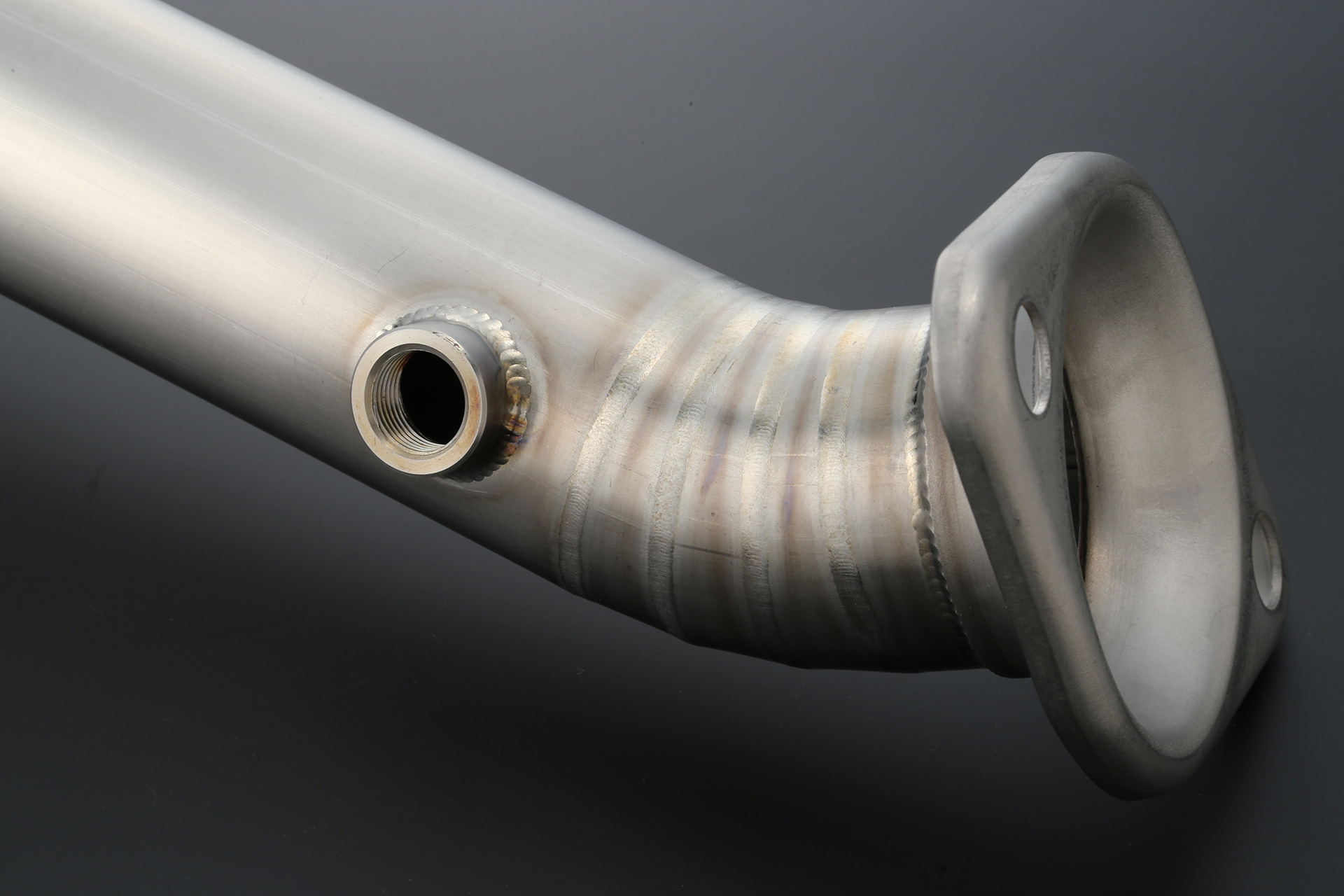

| Comes equipped with an A/F seisor boss for convenience when tuning. |
|
|
|
| |
 |
|
| FLANGE LAYOUT SAME AS STOCK. |
|

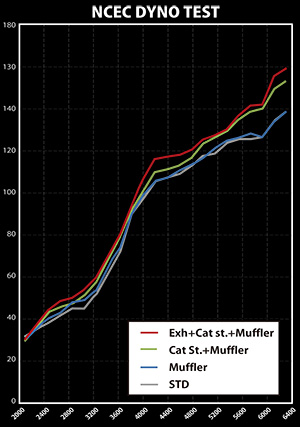

| Stand alone, both the muffler and straight pipe offer improved performance over stock but even more so when installed together. |
 |
|
| |
Install together with the EXPREME EXHAUST MANIFOLD
for maximum performance gains and weight reduction! |
|
 |
|
|
|
|
|
