High performance and lightweight, our signature exhaust is built on the same ethos as the MX-5 MIATA NC making it a perfect match for the agile sport car.



Application : MAZDA MX-5 MIATA NC
MSRP $450.00 (USD)
PART NUMBERFTB6090-MZ03A
Designed for Competition Use only

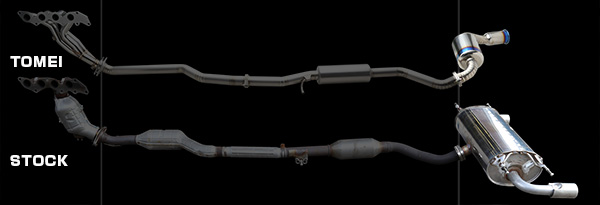

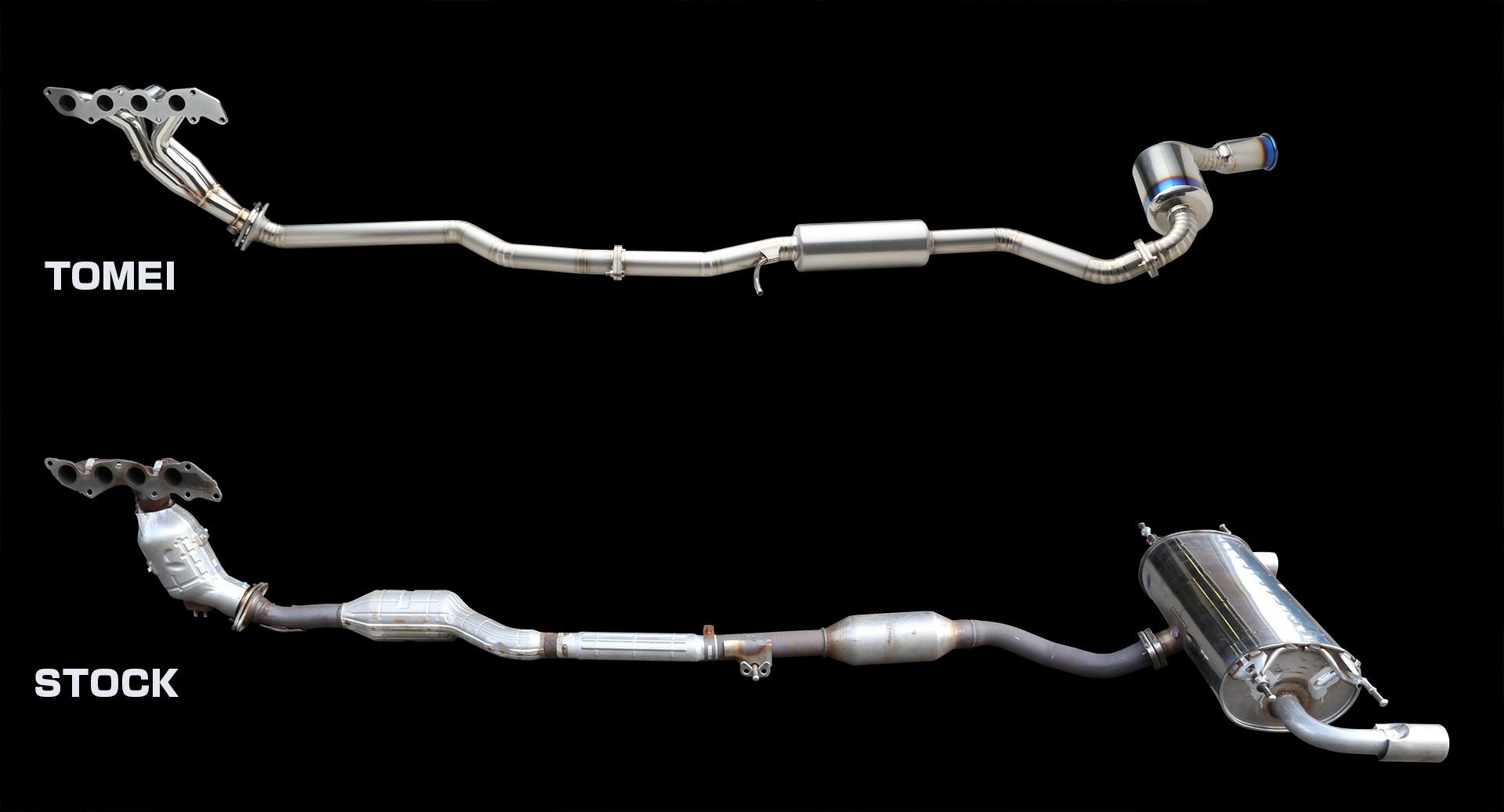

SPECIFICATION COMPARISON VS STOCK
TOMEI
STOCK
PART No.
TB6090-MZ03A
|
MSRP
$450.00 (USD) |
MATERIAL
Ti
|
MAIN PIPE A DIAMETER
2.38inch (60.5mm)
2inch (50.8mm)
MAIN PIPE THICKNESS
1.0 mm
1.5mm
SILENCER DIAMETER
5.98inch(152mm)
8.27inch(210mm)×
11.42inch(290mm) Oval
SILENCER THICKNESS
1.0mm
|
EXIT DIAMETER
3.51inch(89.1mm)
3.02inch(76.6mm)
R=4 curl
EXIT THICKNESS
1.0mm
1.5mm
FLANGE THICKNESS
8.0mm flat
2.5mm Press
WEIGHT
5.29lb (2.4kg)
26.91lb(12.2kg)

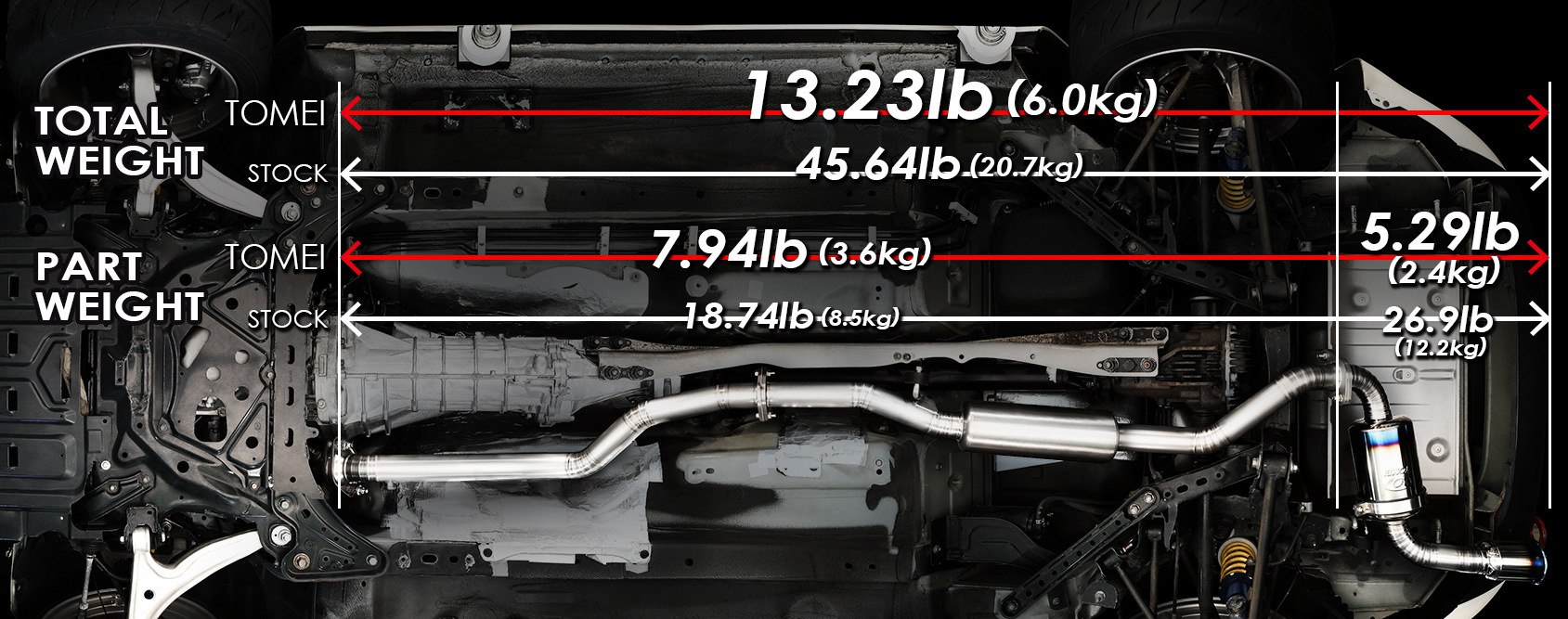

WEIGHT COMPARISON TOMEI STOCK
5.29 lbs (2.4 kg) 26.91 lbs(12.2 kg)
21.62lbs
(9.8kg)
Weight Reduction!!
TEST DATA


EXHAUST NOISE TEST
MX-5 NCEC 6 MT TESTED @4700rpm
 Exh : TOMEI@Catlyst : STOCK@Muffer : TOMEI
without Sound Reducer
 103db
with Sound Reducer
 99db

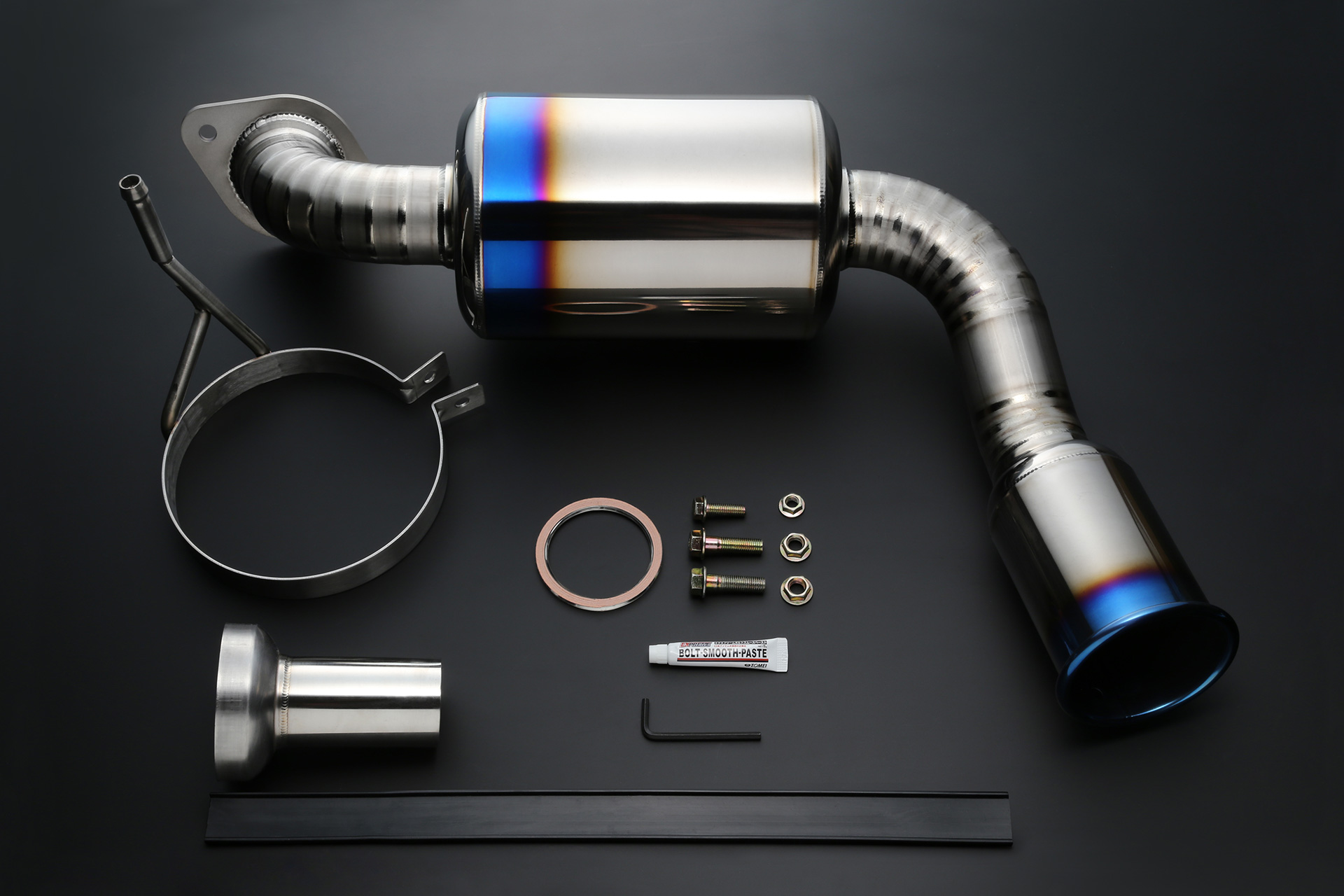

 KIT CONTENTS
MUFFLER (1)
MUFFLER GASKET (1)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
FLANGE BOLT (2)
FLANGE NUT (2)
FLANGE BOLT (1)
FLANGE NUT (1)
SOUND REDUCER ver.2 (1)
BOLT SMOOTH PASTE (1)

Additional bolt holes may be required when using the sound reducer ver.2 .
Click here for details.
FLANGE LAYOUT SAME AS STOCK.
Stand alone, both the muffler and straight pipe offer improved performance over stock but even more so when installed together.

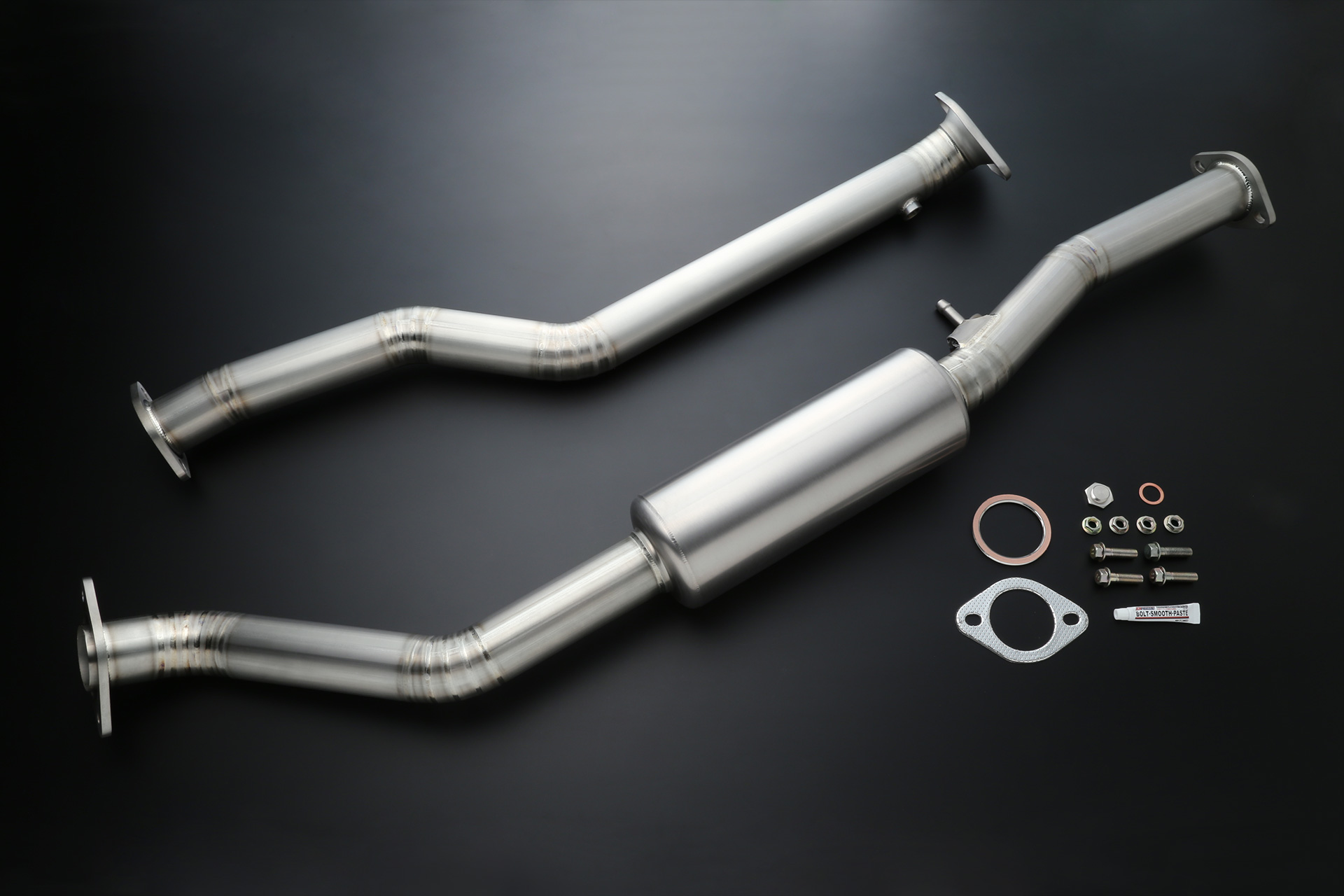

EXPREME Ti TITANIUM
CAT STRAIGHT PIPE

MSRP $640.00 (USD)
PART NUMBER@TB6100-MZ03A

Install together with the EXPREME EXHAUST MANIFOLD
for maximum performance gains and weight reduction!

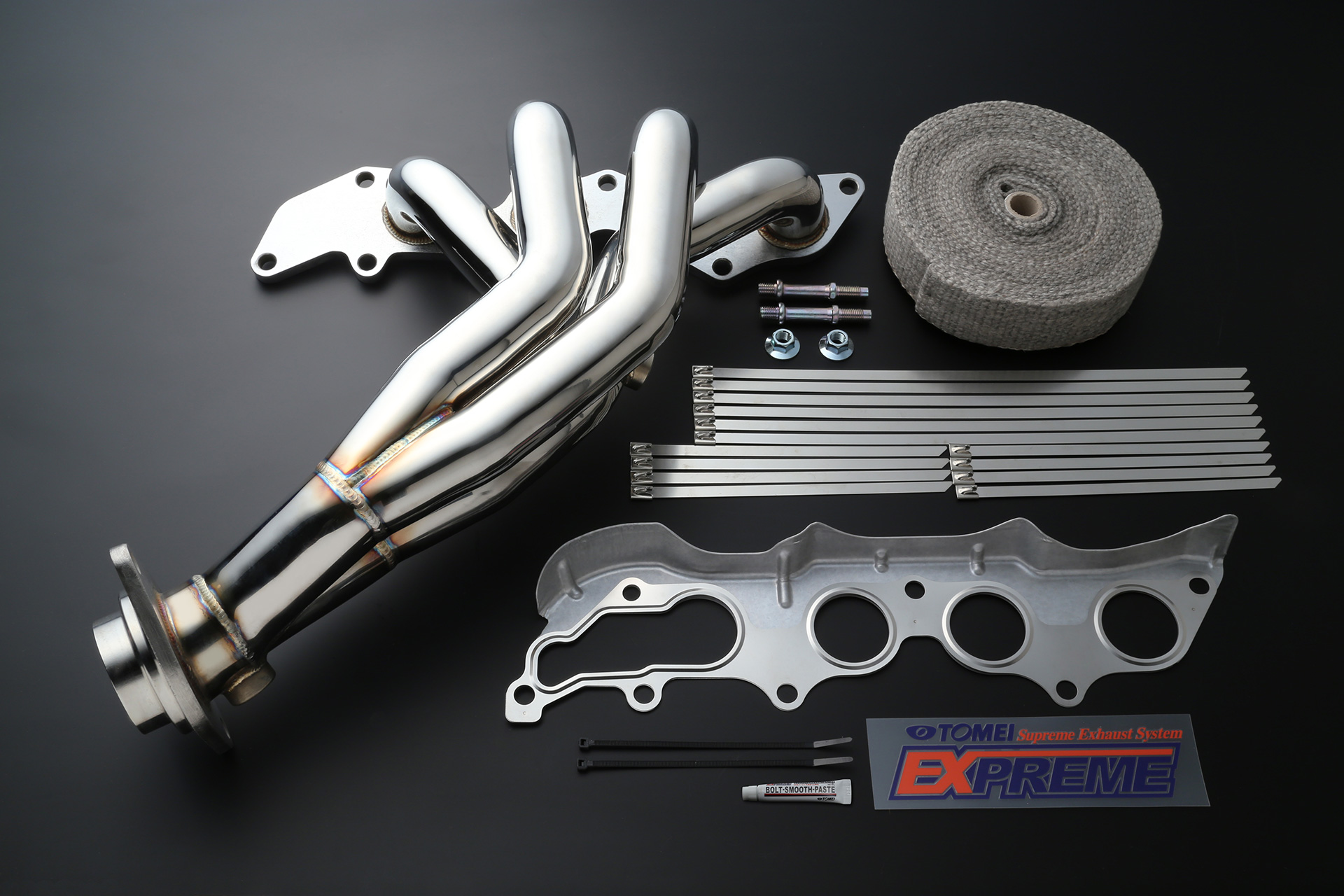

EXPREME EXHAUST MANIFOLD

MSRP $450.00 (USD)
PART NUMBER@TB6010-MZ03A
